The Dwarf Walls

Once the footings had gone off we were ready to form up the dwarf walls.

These are 300mm wide and 300mm high concrete beams which would become the base from which the rammed earth walls would rise.

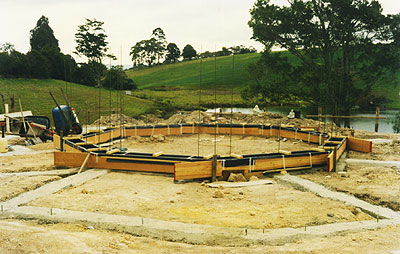

We did this in 2 stages - the inner walls (seen here) first to avoid dragging the weighty concrete hose across formwork.

The inner dwarf walls formed up
The inner dwarf walls formed up


electrical conduits in the walls
electrical and telephone conduits

Room Services

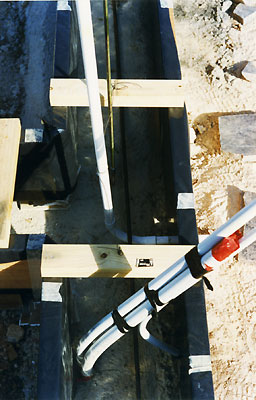

The electrical, water and waste services were all underground so their conduits had been brought in through the footings.

The phone (top conduit) had to enter the building above ground so that Telstra could mount a anti-spike box on the building, it's conduit had to exit through the formwork.

The electricity supply was to arrive underground and it's conduits had been started through the footings and continued vertically - its bent over here so that the conduits would emerge roughly at the centre of the top of the dwarf wall.

The plumbing would remain under floor but the electricity and phone needed to come up through the walls so their conduits had to travel through the dwarf walls.



a stirrup wired in place
a stirrup wired in place

Details

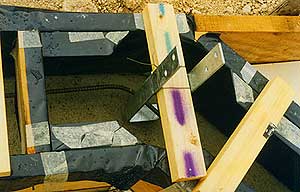

A stirrup wired in place awaiting the concrete.
<<<<<<<

>>>>>>>>

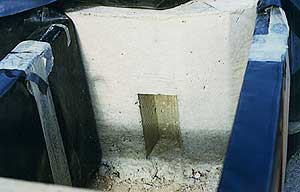

An indent to key the walls together

a key slot to help the radial wall key into the internal walls
a slot to key the radial wall into the internal wall


The outer dwarf walls

The inner walls were poured and vibrated for extra strength.

Here they are curing - we left the plastic form-lining in situ and used it to retard the drying-out of the walls to maximize their strength.

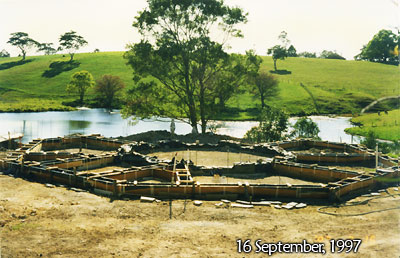

inner walls poured and curing, outer walls formed
inner walls poured and curing, outer walls formed


the inner walls unveiled

That looks better

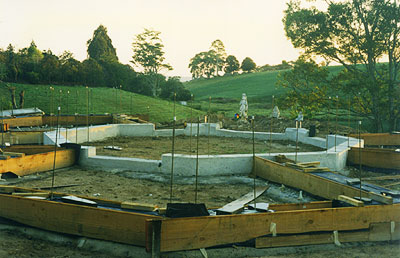

By the time we were ready to pour the outer walls the inner ones were ready to be unveiled and they do look much better without the plastic.

You can tell where the doorways are going to be by the lower sections in the inner walls.



Concrete “homeopathy”

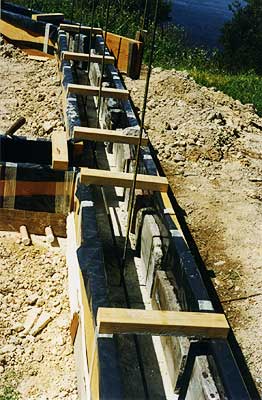

Another last-minute change was inserting a line of granite slabs against the external wall of the formwork.

This served 2 purposes - a decorative feature for the external walls as well as a way of teaching the concrete dwarf wall to become like granite.

It has no science-based evidence to support this notion, but - like many features of the building - it seemed like a good idea at the time.

Certainly the cement in the outer wall is extremely hard and is not as easily chiseled or drilled as other sections.

granite slabs lining the external face

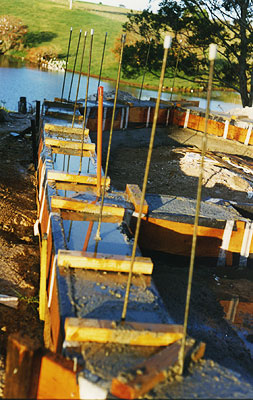

the outer dwarf walls poured
the outer dwarf walls poured

The final wall-pour

The council had insisted we use cyclone rods imbedded in the dwarf walls to tie down the top plate on the top of the earth walls which further complicated the preparations for pouring the walls.

This is what the walls looked like after they had been vibrated and before they had been screeded.

The vibrating was so effective in one place that the formwork expanded due to the pressure of the wet concrete - there was nothing we could do to fix that and so there is still one dwarf wall which juts out from the base of the earth wall.



The Dwarf Walls completed

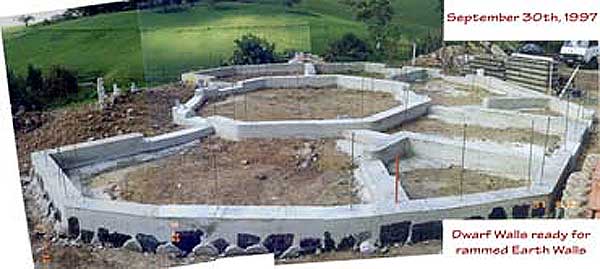

the dwarf walls complete
the dwarf walls exposed at last


Ready for the earth

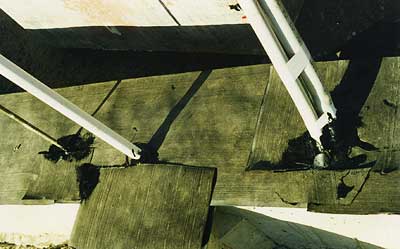

The last step in the dwarf wall preparation was to ensure that moisture could not travel up through the concrete and seep into the earth walls.

I didn't feel happy with assurances that this was “unlikely” and so we added a layer of bituminised felt to the top of the concrete and sealed all the openings with black jack - a waterproof bitumen compound.

the bituminised felt moisture barrier
the bituminised felt moisture barrier


At last we were ready to commence the rammed earth walls.
